New KINGSTON HD-2690 | Engine Lathes

Description

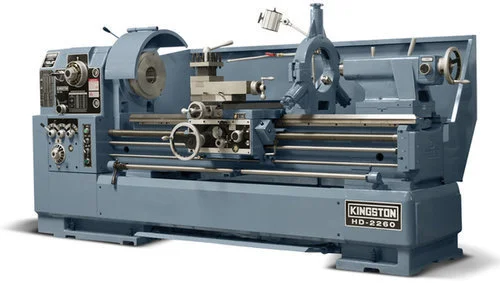

The big brother to our popular HJ model, Kingston’s HD is a versatile precision lathe that can tackle all of your projects, large and small. The hardened and ground main spindle features a 3- point bearing support with taper roller bearings for heavy-duty precision cutting. Select from either the HD 22” swing model which features a D1-8 Camlock spindle, 4 TPI lead screw, and a 10 HP motor, or the HD 26” swing model which features a D1-11 Camlock spindle, 2 TPI lead screw, and a 15 HP Motor. The timing-belt- driven power train system includes 12 speeds from 13 – 1200 RPM, complete with foot brake. Both bedway and cross slide are hardened and ground. The tailstock quill is heat treated and precisely ground, with a 9.8” travel and 1:1 and 1:4 changeable feeds. Machine lengths available from 35” – 160”. Z-axis rapid traverse standard on 90 C.C. and longer lathes.
